5 VPC in a region (soft limit) Min size is /28, max /16
Only private IPv4 ranges are allowed
Subnets
5 IP addresses are reserved in subnets They are bound to AZ
Internet Gateway
Allows resource in a VPC to connect to the internet. Scales horizontally and highly available
- One VPC can only be attached to one IGW and vice versa
- IGW don’t allow internet access on their own. You should edit route tables as well
Route Table
Route tables should be created for IGW to work properly as well as connect to internet with resources
Bastion Host
When you have a resource in a private IP that has to be access from public, you can use bastion host.
It is a specific resource that is in public host, but has direct access to the target resource with a security group and a route.
NAT Instance (outdated)
Allows resource in private subnets to connect to internet. It should be launched in a public subnet. It is a regular EC2 instance with a specific image
- Must disable EC2 (NAT) setting: source/destination check
- Must have Elastic IP attached to it
It basically acts like a proxy in your own network. You connect to the NAT instance from private network, and server only sees your NAT instances’ IP
NAT Gateway
Fully managed, high availability, higher bandwidth NAT solution. Pay per hour and bandwidth.
- NATGW is created in AZ, uses Elastic IP. Can’t be used by EC2 instance in same subnet
- Requires IGW (Private subnet ⇒ NATGW ⇒ IGW)
- 5 Gbps of bandwidth, auto scale up to 100 Gbps
- No security groups required
High Availability
It is resilient in a single AZ, but must create multiple gateways in multi AZ for fault-tolerance

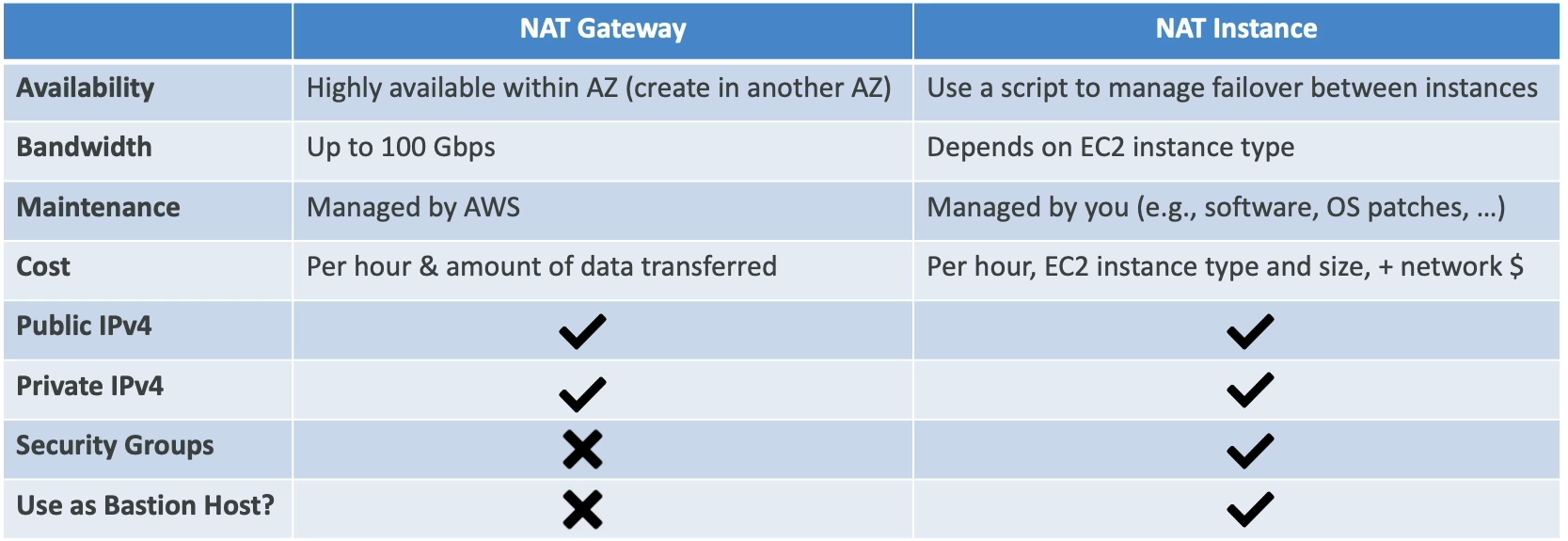

NAT Gateway vs NAT Instance
Egress-only Internet Gateway
Used for IPv6 only
Similar to NAT Gateway but for IPv6. It allows your IPv6 instances connect to internet, but blocks access from the internet.
- You must update Route Tables
Normally, an instance in a private subnet needs to connect to NAT gateway > Internet GW. If it uses IPv6, it connects to Egress-only IGW without the NATGW
Notes
- In a VPC, all subnets are connected by a hidden, implicit router.
