VPC Peering
Connect two VPC, make them behave like they are in same network.
Must not have overlapping IP ranges
- Peering is NOT transitive, A-B & B-C connection doesn’t mean A-C can connect each other
- You must update route tables in each VPC’s subnets
- You can peer different AWS accounts/regions, and can reference a security group instead of IP range
VPC Endpoints
Every AWS service is publicly exposed. VPC Endpoints allows you to connect to AWS services using a private network, without using internet.
Interface Endpoint
It is essentially a virtual network card with a private IP address from your subnet’s IP range. It acts as an entry point for traffic destined for a specific service.
Gateway Endpoint (preferred)
It is a target in your VPC Route Table used to reach specific AWS services. It does not use an IP address or a network interface.
When you create one, you select which Route Tables should be updated. AWS then adds a route that directs traffic for that service through the gateway.
Flow Logs
Capture info about IP traffic: VPC, subnet, ENI.
- Data can go to S3, CloudWatch Logs, and Kinesis Data Firehose.
- Capture from AWS managed interfaces: ELB, RDS, ElastiCache, Redshift, WorkSpaces, NATGW, Transit Gateway…

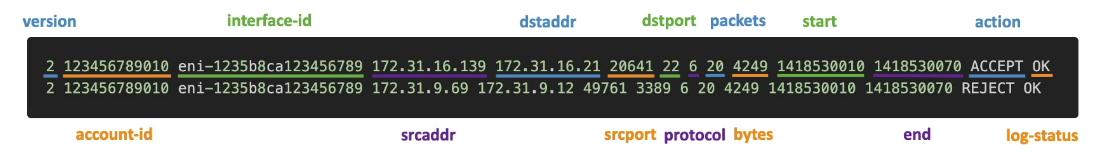

Syntax
A common exam scenario asks how to troubleshoot why an instance can’t reach the internet:
- If Flow Logs show REJECT, it’s a Security Group or NACL issue.
- If Flow Logs show nothing (no record at all), it’s likely a Routing issue (check the Route Table/Internet Gateway).
Traffic Mirroring
It mirrors the traffic going to a specific ENI and directs to an ENI or Network LB. This allows reviewing the traffic and examining without interrupting the connection or causing latency
